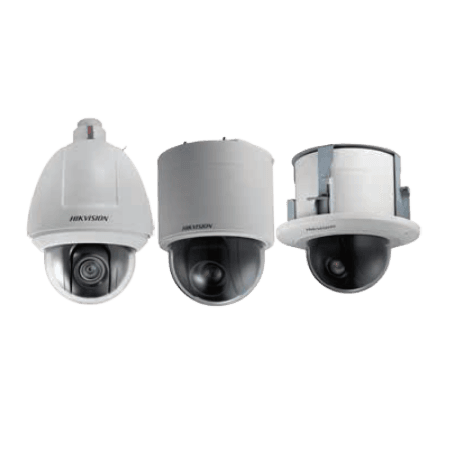

Camera HD-TVI PTZ 1080P

Mã sản phẩm: DS-2AE5230T-A(3) Danh mục: Camera HIKVISION

Camera
Image Sensor:	\|	1/3″ CMOS
Effective Pixels:	\|	1920(H) × 1080(v)
Horizontal Resolution:	\|	1920
Signal System:	\|	PAL/NTSC
Min.illumination:	\|	Color: 0.02Lux@(F1.6,AGC ON) B/W: 0.002Lux@(F1.6,AGC ON)
White Balance:	\|	Auto / Manual / ATW / Indoor / Outdoor
AGC:	\|	Auto/Manual
S/N Ratio:	\|	≥ 50dB
DNR:	\|	3D DNR
BLC:	\|	ON/OFF
WDR:	\|	Support
Shutter time:	\|	PAL: 1-1/10,000s NTSC: 1-1/10,000s
Day&Night:	\|	ICR
Digital Zoom:	\|	16x
Privacy Masking:	\|	8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus Mode:	\|	Auto / Semi-automatic / Manual
Lens
Focal Length:	\|	4-120mm, 30X
Zoom Speed:	\|	Approx.3.0s(Optical Wide-Tele)
Angle of View:	\|	58-1.7 degree(Wide-Tele)
Minimum Working Distance:	\|	10-1500mm (Wide-Tele)
Aperture Range:	\|	F1.6-F4.4
Pan & Tilt
Pan Range:	\|	360° endless
Pan Speed:	\|	Pan Manual Speed: 0.1°-250°/s, Pan Preset Speed: 300°/s
Tilt Range:	\|	-5°~90° (Auto Flip )
Tilt Speed:	\|	Tilt Manual Speed: 0.1°-150°/s, Tilt Preset Speed: 200°/s
Proportional Zoom:	\|	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:	\|	256
Patrol:	\|	8 patrols, up to 32 presets per patrol
Pattern:	\|	4 patterns, with the total recording time not less than 10 minutes
Power-off Memory:	\|	Support
Park Action:	\|	Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display:	\|	ON/OFF
Scheduled Task:	\|	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
RS-485 communication diagnosis:	\|	Support
Input & Output
Monitor Output:	\|	1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
General
Menu Language:	\|	English / Chinese
RS-485 Protocols:	\|	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply:	\|	24V AC
Working Temperature /Humidity:	\|	-30 °C-65°C(-22°F-149°F)(outdoor dome) / -10°C-50°C(14°F-122°F)(indoor dome ) 90% or less
Protection Level:	\|	IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:	\|	Various mounting modes option
Dimensions:	\|	Φ220×305mm (Φ8.66”×12.00”)(Outdoor) Φ183.4×243mm(Φ7.22”×9.56”) (Indoor) Φ245×236mm(Φ9.65”×9.29”) (In-ceiling)
Weight(approx.):	\|	3Kg (6.61 Ibs)

Chuẩn bảo vệ	IP66 trở xuống (trong nhà)
ColorVu	Camera thường
Độ phân giải	2 MP
Hình dáng	Bán cầu
Kết nối	Camera Analog
Nguồn	12VDC/24VAC
Nhãn hiệu	Hikvision
Ống kính	Zoom cơ, Zoom tự động
