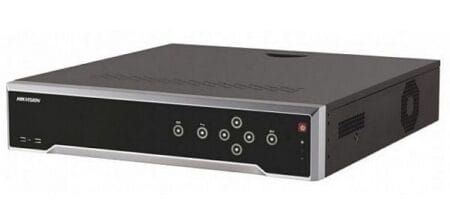

Đầu ghi hình camera IP 32 kênh H.265 HIKVISION DS-7732NI-I4(B)

CHI TIẾT Datasheet-of-DS-7700NI-I4B_NVR_V4.61.000-20220430

Key Feature
 H.265+/H.265/H.264+/H.264 video formats
 Up to 16/32-ch IP camera inputsDatasheet-of-DS-7700NI-I4B_NVR_V4.61.000-20220430
 Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding
capacity
 Up to 160/256 Mbps incoming bandwidth
Professional and Reliability
 H.265+ compression effectively reduces the storage space by up to 75%
 Dual-stream recording saves bandwidth
 Adopt stream over TLS encryption technology which provides more secure stream transmission service
 Support double verification for playback and downloading
HD Video Output
 Provide independent HDMI and VGA outputs
 HDMI video output at up to 4K resolution
Storage and Playback
 Up to 4 SATA interfaces for HDD connection
 16-ch synchronous playback
Smart & POS Function
 Support multiple VCA (Video Content Analytics) events
 Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
people counting
 POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 Smooth streaming technology
 Support web access without plug-in
DS-7700NI-I4(B) Series NVR
Specification
Model DS-7716NI-I4(B) DS-7732NI-I4(B)
Video and Audio
IP video input
16-ch 32-ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32
MP/24 MP IP video inputs.
Incoming bandwidth 160 Mbps 256 Mbps
Outgoing bandwidth 256 Mbps
HDMI 1 output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 ×
1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video output mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding format H.265+/H.265/H.264+/H.264/MPEG4
Recording resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32
MP/24 MP IP video inputs.
Synchronous playback 16-ch
Capability 1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30
fps)/16-ch@1080p (30 fps)
Dual stream recording Support
Stream type Video, Video & Audio
Audio compression G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connections 128
Network protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,
ISUP, UPnP™, HTTP, HTTPS
Network interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
Serial port 1 RS-485 (half-duplex), 1 RS-232
SATA 4 SATA interfaces
eSATA (optional) 1 eSATA interface
Capacity Up to 10 TB capacity for each disk
Alarm in/out 16/4 (16/8 optional)
USB interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 20 W
(without HDD)
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimension (W × D × H) 445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
Weight (without HDD) ≤ 5 kg (11 lb)
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Dimension
Physical Interface
No. Description No. Description
1 eSATA Interface 8 VGA Output (DB9 Connector)
2 LAN1 and LAN2 Interfaces 9 RS-232 Serial Interface
3 AUDIO OUT 10
RS-485 Serial Interface, Controller Port, ALARM
IN, ALARM OUT 16/4 (16/8 optional)
4 AUDIO IN 11 GND
5 HDMI 1 and HDMI 2 Interfaces 12 Power Switch
6 USB 3.0 Interface 13 100 to 240 VAC Power Supply
7 VIDEO OUT
Available Model
DS-7716NI-I4(B), DS-7732NI-I4(B)
