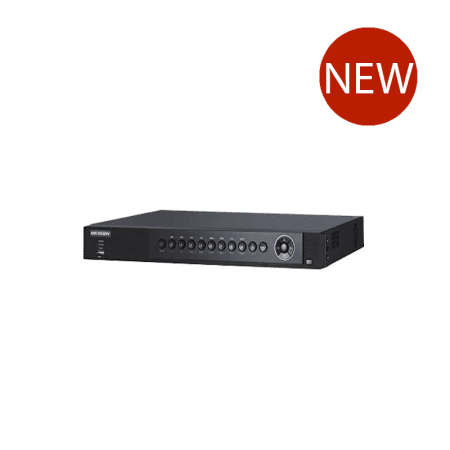

DS-7204HUHI-F1/S 5MP 1U TURBO HD DVR
• H.264+ & Dual-stream video compression
• Support HD-TVI/analog/AHD/IP camera triple hybrid
• Support both HD-TVI and analog cameras with
adaptive access
• Full channel@5MP resolution non real-time recording
• HDMI output at up to 4K while VGA output at up to 1920×1080P
resolution
• Long transmission distance over coax cable
• Support up to 4/8-ch synchronous playback
Mô tả
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | | | 4-ch |
| Video Compression: | | | H.264,H.264+ |
| Analog and HD-TVI video input: | | | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types: | | | Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input |
| Video Input Interface: | | | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | | | G.711u |
| Audio Input Interface: | | | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio: | | | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
| Video/Audio Output | ||
| CVBS Output: | | | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 |
| HDMI/VGA Output: | | | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | | | Mainstream:5MP/4MP/3Mp/1080p/720p/WD1/4CIF/VGA/CIF Sub-stream:WD1/4CIF/CIF/QVGA/QCIF |
| Frame Rate: | | | Main stream: 5MP@10fps/4MP@15fps/3MP@15fps/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N) |
| Video Bit Rate: | | | 32 Kbps-10 Mbps |
| Stream Type: | | | Video/Video&Audio |
| Two-way Audio: | | | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output: | | | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | | | 64kbps |
| Dual Stream: | | | Support |
| Playback Resolution: | | | 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF |
| Synchronous Playback: | | | 4-ch |
| Network management | ||
| Remote connections: | | | 128 |
| Network protocols: | | | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Hard Disk Driver | ||
| Interface Type: | | | 2 SATA Interfaces |
| Capacity: | | | Up to 6 TB capacity for each disk |
| External Interface | ||
| Network Interface: | | | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | | | 2 USB 2.0 Interfaces |
| Serial Interface: | | | 1; standard RS-485 serial interface, half-duplex |
| Alarm Input: | | | 4-ch |
| Alarm Output: | | | 1-ch |
| General | ||
| Power Supply: | | | 12V DC |
| Consumption: | | | ≤ 15W(without hard disks) |
| Working Temperature: | | | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
| Working Humidity: | | | 10% to 90% |
| Chassis: | | | 380mm 1U chassis |
| Dimensions: | | | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
| Weight: | | | ≤1.5 kg(3.3lb) |
