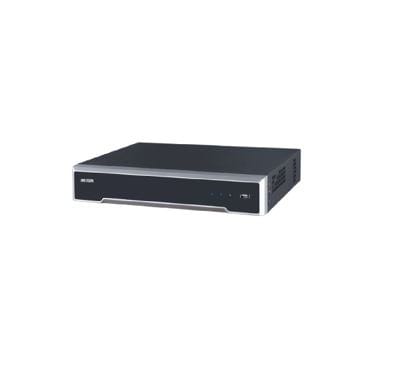

DS-7608NI-K1/8P(B) Đầu ghi hình camera IP 8 kênh

DS-7608NI-K1/8P(B) Đầu ghi hình camera IP 8 kênh

SKU: DS-7608NI-K1/8P(B) Danh mục: Đầu ghi hình

Video/Audio Input
Two-way audio input:		1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:		8-ch

Network
Incoming bandwidth:		80Mbps
Outgoing bandwidth:		80Mbps

Video/Audio Output
HDMI Output:		1-ch, resolution: 4K(38402160)/60Hz, 4K(38402160)/30Hz, 19201080P/60Hz, 16001200/60Hz, 12801024/60Hz, 1280720/60Hz, 1024*768/60Hz
Recording Resolution:		8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:		1-ch, RCA (Linear, 1kΩ)
VGA Output:		1-ch, resolution: 19201080P/60Hz, 12801024/60Hz, 1280720/60Hz, 1024768/60Hz

Decoding
Capability:		1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback:		8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Hard Disk
SATA:		1 SATA interface for 1 HDD
Capacity:		Up to 6TB capacity for each HDD

External Interface
USB Interface:		2, USB2.0

General
Power Supply:		12 VDC
Consumption(without hard disk and POE):		≤ 10 W
Working Temperature:		-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:		10 % ~ 90 %
Chassis:		1U chassis
Dimensions:		315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
Weight(without HDD):		≤ 1 kg (2.2 lb)

Độ phân giải	8 MP
Nguồn	12VDC/24VAC
Nhãn hiệu	Hikvision
Poe	PoE
Số kênh	8 kênh
