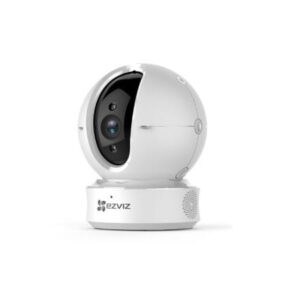

Wi-Fi Pan-Tilt Camera CS-CV246

Mã sản phẩm: ez360 Danh mục: Camera EZVIZ

Camera
Model	ez360 (CS-CV246-B0-3B1WFR)
Image sensor	1/4″ Progressive Scan CMOS/1/2.7″ Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	4mm@ F2.2, view angle: 90°(Diagonal)
PT Angle	Pan: 340°, Tilt: 120°
Lens Mount	M12
Day & Night	IR cut filter with auto switch
DNR	3D DNR
WDR	Digital WDR
Compression
Video Compression	H.264
H.264 Type	Main Profile
Video Bit Rate	HD; balance; fluency. Adaptive bit rate.
Audio Compression	AAC
Audio Bit Rate	Self-Adaptive
Max. Resolution	1280 × 720/1920 × 1080
Frame Rate	Self-Adaptive Max:25fps
Image setting	Brightness, contrast, saturation, etc.（configure via EZVIZ studio）
BLC	Support
Network
Storage	Support Micro SD card (Max. 128G)
Smart Alarm	Motion detection
One-key configuration	SmartConfig（Wi-Fi One Push Configuration）
Protocol	Ezviz cloud proprietary protocol
Interface Protocol	Ezviz cloud proprietary protocol
General Function	Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Wi-Fi
Standard	IEEE802.11b, 802.11g, 802.11n Draft
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Support 20MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps,11g :54Mbps,11n :135Mbps
General
Operating Conditions	14°F to 113 °F (-10ºC ~ 45ºC ), Humidity 95% or less ( non-condensing)
Power Supply	DC 5V±10%
Power Consumption	7W MAX/5.5W MAX
IR Range	MAX. 10 meters
Dimensions (mm)	87.787.7112.7mm
Weight	256g
